Ⅰ. standard and applicable range:
This series of machine comply with GB/T16491-2008 Electronic Universal Testing Machine and JJG-1986 Verification Regulation of Electronic Universal Testing Machine; and meets the requirements of national standard GB/T14201-93 Test Method of Iron Ore Pellet Compression Strength, and can perform mechanical property and analysis for metallurgy pellet, and widely applicable to compression test of casting, metallurgy, mine and other pellet, with features of automatic statistics, storage of single breakage value, quick return etc.
Ⅱ. Functions:

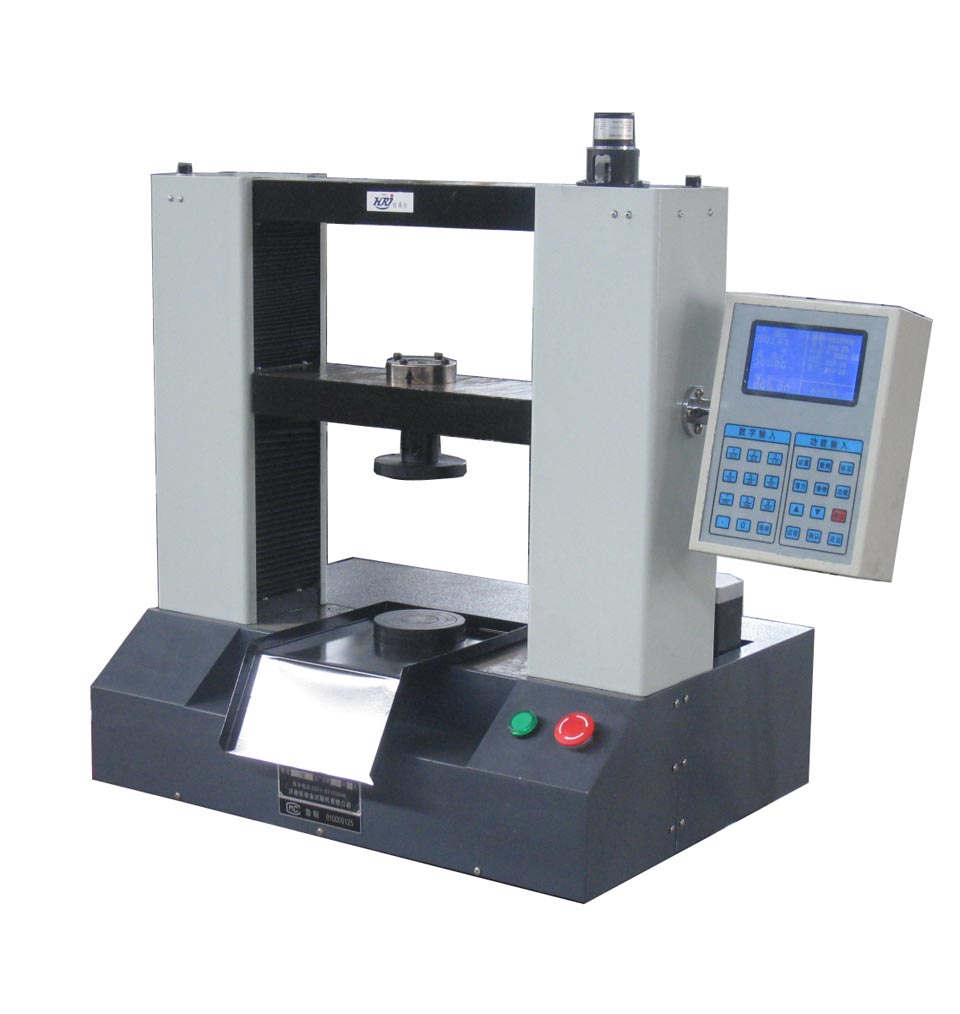

1. mainframe:
l portal frame structure with neat appearance
l loading mode of precise screw assembly, double nuts screwed to reduce clearance to ensure system with high rigidity and high dynamic performance
2. servo speed regulating loading system
l imported or domestic famous brands servo motor and drive, precise wheel speed reducer, small volume, high efficiency, low noise
l wide adjustment, stable running, high precision
3. built-in control system with full hardware
it can be controlled by computer or liquid crystal digital, simple operation, auto return after specimen breaking.
Ⅲ. Basic configuration:
|
name |
function |
Qty. |
Remarks |
|
Main machine frame |
Portal frame structure
Precise screw assembly
High precision sensor
Adjustable limit device
Perfect screw protective cover |
1 set
2 sets
1 pc |
homemade |
|
controller |
Large LCD, high precision, high reliability |
1 set |
homemade |
|
Drive device |
Servo motor and driver
Precise planet reducer |
1set |
Imported or homemade |
|
Test accessories |
Compression accessories and screenings recovery device |
1 set |
|
