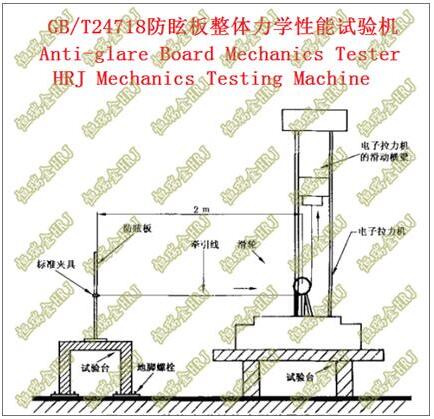

The 10kN anti-glare board anti-wind load tester is used to test the anti-wind load F and anti-deformation R of the anti-glare board from 700mm to 1100mm, and is designed and produced according to the design of the GB/T24718 anti-glare board. The anti-glare board is fixed on the test platform, and the middle part is clamped with a standard fixture. The center point of the standard fixture is the mechanical traction point. The traction direction is perpendicular to the anti-glare board surface and is towed at a speed of 100 mm/min. When the board surface is broken or the maximum load has been reached, the test is stopped. The maximum traction load received is the anti-glare board wind load F. A total of three tests were carried out, and the arithmetic mean of the three test results was taken as the test results. The deformation resistance R is measured by laser projection initial projection displacement, final projection displacement, direct reading, accurate and reliable. Anti-glare board wind load constant C=1647.5N/m²。 |
