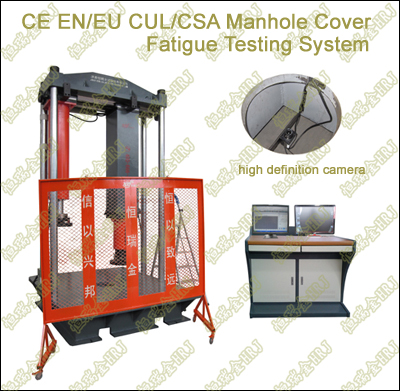

1000kN/200kN Communication Manhole Cover Compression Fatigue Test System

1000kN/200Kn communication manhole cover compression and fatigue test system is used in test for bearing and fatigue property with communication manhole cover, telecommunication manhole cover, television manhole cover, communication device inspection manhole cover, heavy and light type of manhole cover. it adopts 4 columns with high rigidity and stability, double cylinder upper placed paratactic loading frame, test communication dynamic fatigue loading compression ≥1000kN, communication manhole dynamic fatigue loading ≥±200kN, communication manhole cover dynamic fatigue loading frequency ≥0.2Hz, communication manhole cover dynamic fatigue cycling test : 2.5*10⁵ times, communication manhole cover residual deformation deflection deformation precision is 0.001mm, 360° fully scan and shooting for manhole cover testing crack.

test according to EN124-2015, EN1433, completing A15/B125/C250/D400/E600/F900 and other series manhole cover compression test, residual deformation, deflection and so on.
