HRJ-Test machine

GB / T5349 - 2005 Fiber - reinforced Thermosetting Plastic Composites Pipe Determination of Longitudinal Tensile Properties

Entire tensile testing is suitable for pipe of nominal diameter (D) is less than 100mm, sampling testing is suitable for pipe of nominal diameter (D) is more than 150mm, nominal diameter of pipe (D) between 100mm and 150mm refer to testing.

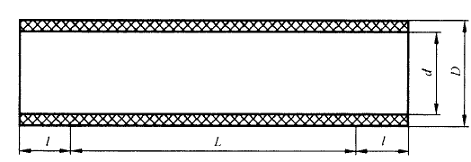

Size of sample: L≥450mm；l≥50～100mm；

Entire tensile clamper of Handtailor pipe: 50KN, 100KN, 200KN,300KN electronic universal testing machine.

Max. Clamping diameter of pipe is 80mm.
