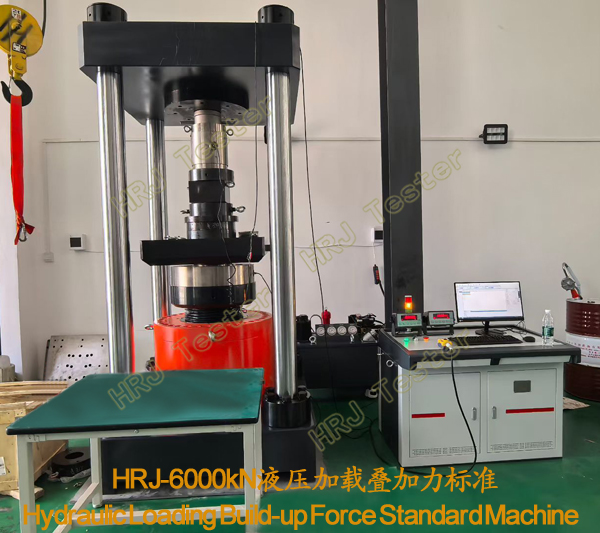

首页 >> 试验机案例 >> HRJ-6000kN液压加载叠加力标准Hydraulic Loading Build-up Force Standard Machine
HRJ-6000kN液压加载叠加力标准机，用于各种承重传感器和电阻应变式力传感器的检定和校准；对测力环、测力计等工作测力仪进行检定和校准；对各种规格和级别的压缩试验仪、颗粒强度测试仪等专用工作测力机进行检定和校准；对其他专用测力装置进行检定和校准；金属丝式、箔式、薄膜式、应变管式、应变梁式、组合式荷载传感器的检定和校准；
→用一个(组)比被检定、校准测力仪准确度高的标准测力仪作为参考标准，与被检测力仪串联，给被检测测力仪施加力值进行计量、控制、检定、校准的力标准机。
→计量检测、工业生产、水利水电、铁路交通、智能建筑、航空航天、军工科研、石化化工、机械冶金、油井管道、电力电器、船舶制造等研制、生产、使用中各类称重传感器(静态质量)、压力负荷传感器。
→控制系统自动采集并记录被检测力仪的输出值，逐点完成检测、校准。
→HRJ叠加式力标准机由高刚性高稳定性四柱载荷机架、标准测力传感器、测控系统组成；
→高精度标准测力传感器、线性宽、稳定性好、精准测控。
→伺服测控系统,确保高精高效、低噪音、快速响应, 实现对试验的自动控制。
→静音型伺服油源泵站，过滤净油，压差随动，自带冷却系统，适于长期连续工作。
→人体工程学设计，机宜人、人适机，符合人-机-环境系统，高效健康、舒适安全。
→内置式全数字闭环、多通道、多功能、易操控的HRJ-Test力标准机控制软件；多种标准方法（国标、国军标、英标、美标、德标、日标、意标、俄标、法标、澳标、欧标等/GB、GJB、ISO、JIS、ASTM、DIN、BS、NF、EN、AS、NBR、IEC、GOST、CNS、APA)；可定制英文版。
→载荷自动加载保持、循环控制及自编程控制等多种控制方式。
→过程再现和数据再分析、多曲线叠加、放大、比较、遍历、满度自调。
→灵活的Excel或Word报告格式，可选择、指定、排序、单独、合并打印。
→操控软件，采用模块化、开放式编程、个性化设计，可自行调整。
→标准模块；权限管理模块、控制模块、分析模块、查询模块、输出模块等。
→多种力单位切换(N；kN；kg；T等)。
→电路板采用光电隔离设计，抗干扰能力强。
→网络数据库管理，可与多家联网公司直联。
→多重保护功能：过载过流过压保护；试验结束自动保护；紧急停机保护。
→最大载荷力6000kN，测量范围10%～100%F.S，载荷力分辨力≤0.001%F.S，准确度等级0.02；
→灵敏限r≤0.03%，力值重复性R≤0.03% F.S，力值误差S≤0.02% F.S；
→30s负荷波动性0.015％F.S，力值保载时间≥30min，载荷力加载速率0.05～8.0kN/s；
→载荷力机架有效跨度800x800mm/可定制，上下压板间距离950mm/可定制；
→活塞行程0～150mm/可定制，活塞上升速度≥60mm/min；
→电源电压及功率～380V±10%，50Hz（须可靠接地），≈8.5kW；
→载荷力机架尺寸及重量LWH≈1350x1350x2800mm，WT≈13t；
→伺服泵站控制柜尺寸及重量LWH≈1200x1000x1300mm，WT≈550kg；
