首页 >> 试验机案例 >> 飞机轮对跑道交变冲击荷载耐久性测试系统Aircraft Wheel Runway Alternating Impact Load Durability Test System

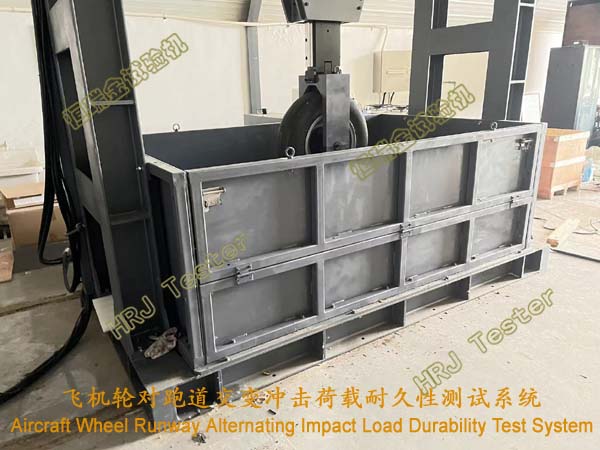

HRJ飞机轮对跑道交变冲击荷载耐久性测试系统由四部分组成：垂向交变加载系统，水平交变加载系统，荷载耐久性测试台架系统。HRJ-Test耐久性试验数据采集处理测控系统。采用道面模拟材料，测试飞机起落滑行时轮胎对跑道道面冲击荷载，分析道面力学性能变化状况，评估飞机跑道服役安全期。对道面坑洼凹槽裂纹划痕等摩擦冲击损毁状况进行评估，为道面修复提供参考数据。
→垂向交变加载系统荷载±100kN。垂向交变加载伺服液压缸行程±150mm。
→垂向交变加载速度容量：0.05～300 mm/min内允许最大荷载，300～500 mm/min内允许1/4最大荷载。
→水平交变加载系统荷载±10kN。水平交变加载往复行程±500mm。水平交变加载速度容量0～48m/min。
→荷载耐久性测试道面尺寸LWH≈2500x1500x900mm。耐久性测试飞机轮直径≤￠851mm(可定制￠1168mm)。
