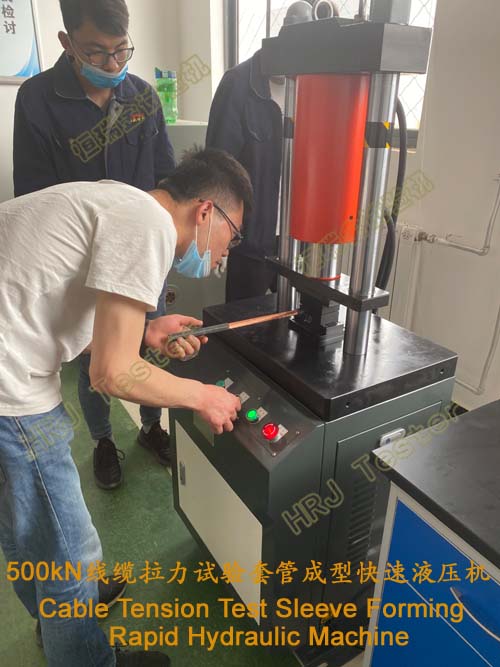

首頁 >> 試驗機案例 >> 500kN線纜拉力試驗套管成型快速液壓機Cable Tension Test Sleeve Forming Rapid Hydraulic Machine
500kN線纜拉力試驗套管成型快速液壓機,用于電線電纜拉力試驗兩端夾持用套管壓制成型，保證拉力試驗過程中夾持力足夠大，電線電纜不産生滑移和夾持受損，保證線纜拉力測試准確度。
500kN線纜拉力試驗套管成型快速液壓機,適用于合鋼芯鋁絞線拉力、硬銅絞線硬鋁絞線鋁合金絞線拉力、電力機車線拉力、信息傳輸複合線纜拉力、架空裸單線裸絞線拉力、低壓中壓高壓電力電纜拉力、絕緣電纜控制電纜特種電纜拉力。滿足截面積1000mm2-800mm2電線電纜拉力試驗。
→增加工裝附具,可用于電力電纜導管壓制、裁切沖片落料、金屬擠壓成型、薄板拉伸彎壓，零部件裝配拆卸校直校正,壓印壓痕調彎整形壓延沖孔，粉末成型壓裝，可塑性材料壓制成型。
→線纜拉力試驗套管成型快速液壓機荷載500kN（可定制1000kN），系統壓力40MPa，液壓機壓制速度150mm/min。
→線纜拉力試驗套管成型快速液壓機液壓缸行程0～300mm，液壓機模具空間＞150mm。
→點動按鈕控制快速上升、快速下降。試驗套管成型模具，高強度材料精密制作，多種規格可供選擇。
